The new GLOBALlift H+ service lifts

With the rope-guided GLOBALlift+, Hailo Wind Systems managed to meet its objective to produce a service lift that complies with the most discerning standards of quality and can be used in regions across the world, quickly and at an attractive price. The new GLOBALlift H+ models have been developed on a rope-guided two-person cabin basis; however, they can also be used to transport one or three people. Modern safety technology such as the safety catching devices, hoists, and overload safety devices, which we continuously develop further, guarantee the utmost safety.

The modular aluminium construction with its special side design offers better all-round visibility, while the compact cabin protects the user and allows for smaller platform cutouts. Naturally, all GLOBALlift+ models optionally comply with the special requirements of offshore wind farms. They are available across the globe, among other things in compliance with the Machine Directive 2006/42/EC and with a CE certificate.

New safety functions

The rope-guided GLOBALlift H+ service lifts are fitted with various new or improved monitoring and safety functions. The series include the following standard features:

1 Limit Switch
2 Continuous cable hoist
3 Arrester
4 Switch cabinet
5 Lateral guide profile
1
2
3
4
5

For restricting travel TOP/ Safety cut-out for restricting travel TOP.

1
2
3
4
5

For maximum safety – smart and efficient.

1
2
3
4
5

The arrester protects the cabin against overspeed during travel, and in the event of a break in the bearer rope.

1
2
3
4
5

with all electronic controls – smart and efficient.

1
2
3
4
5

for improved work on guide cables. Great sustainebility and safety all the way up and down.

Improvement of even the most minor details

The drive hoists with a tractive force of 600 kg are fitted with all relevant safety systems such as an arrester device and load capacity limiter. The bearer cables, safety cables, power cable, interlocking systems, controls, and other components are manufactured specific to customer or country specifications. Pre-installation, daily check, and maintenance of the service lifts is now also easier and more flexible (this also applies to retrofitting, please refer to the Retrofitting section). Save time and resources.

The new rows of perforated sheets in the side walls ensure good all-round visibility and give the service employees a safe feeling. Naturally, the GLOBALlift+ models comply with all relevant international standards. They are available in various variants such as a “Cold Climate Version” (CCV) or Offshore Version.

At the same time, all components of the GLOBALlift H+ Series have been overhauled and can be tailored to customer specifications. All service lifts are additionally ideally suited for retrofitting into pre-existing wind farms.

An overview of the technical data of the GLOBALlift H+ and R+ service lifts


GLOBALlift Legend

Live load
Passenger service
Measurements LxBxH
Required space on the platform for the cabin passing through
Hoist
Rope suspension
Distance between guide cables

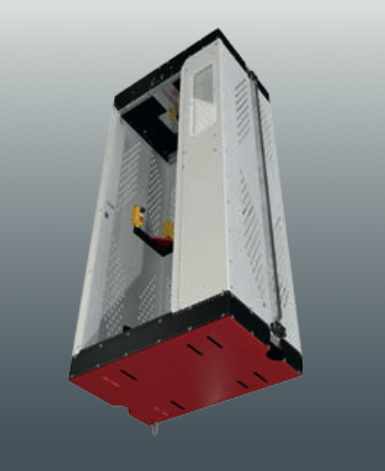

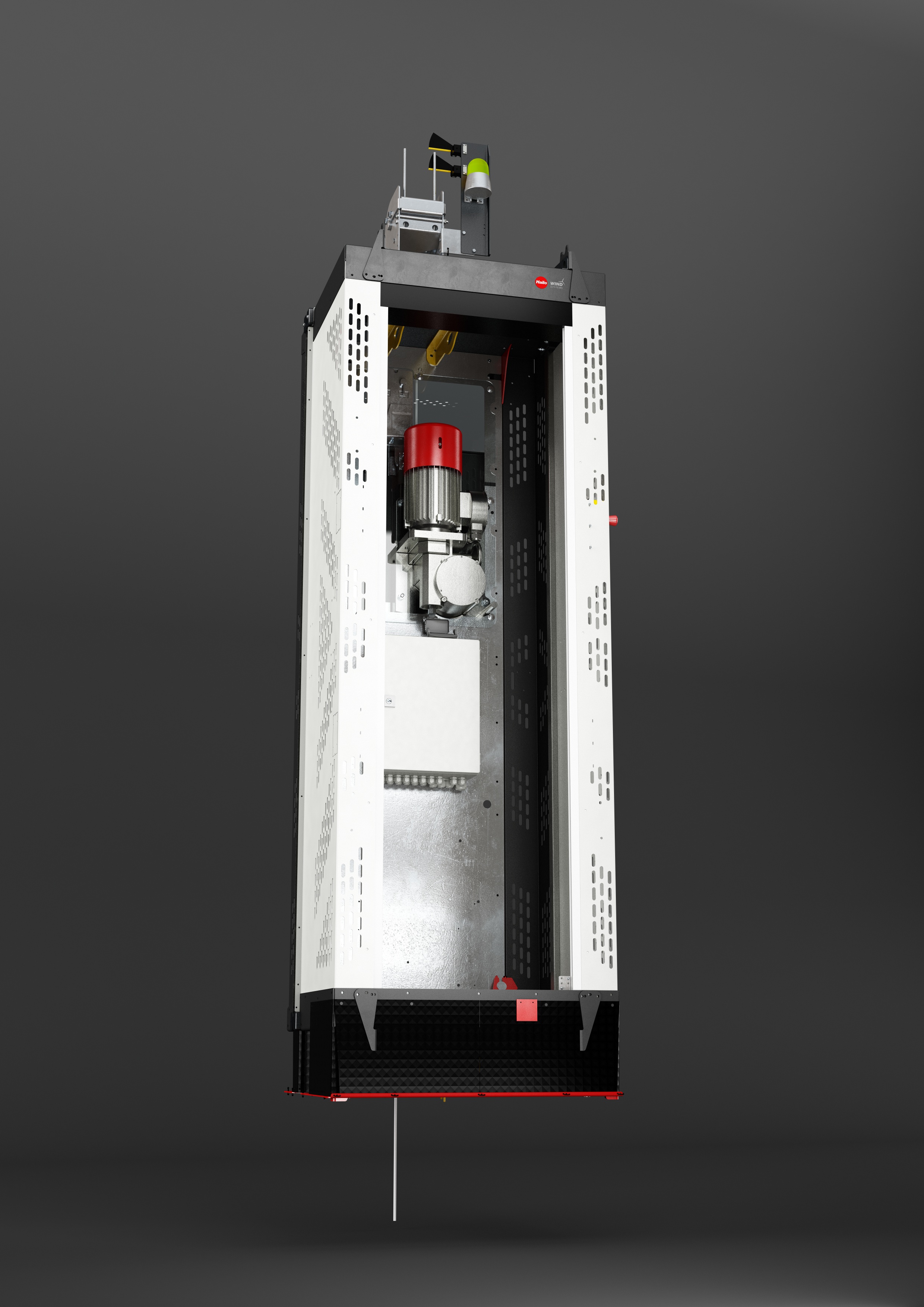

GLOBALlift H1
Servicelift, rope-based
Payload 250kg
max. 2 Persons
632 x 590 x 2914 mm
Space requirement  720 x 720 mm
400 V/50 Hz, 600 kg
24 kN
630 mm

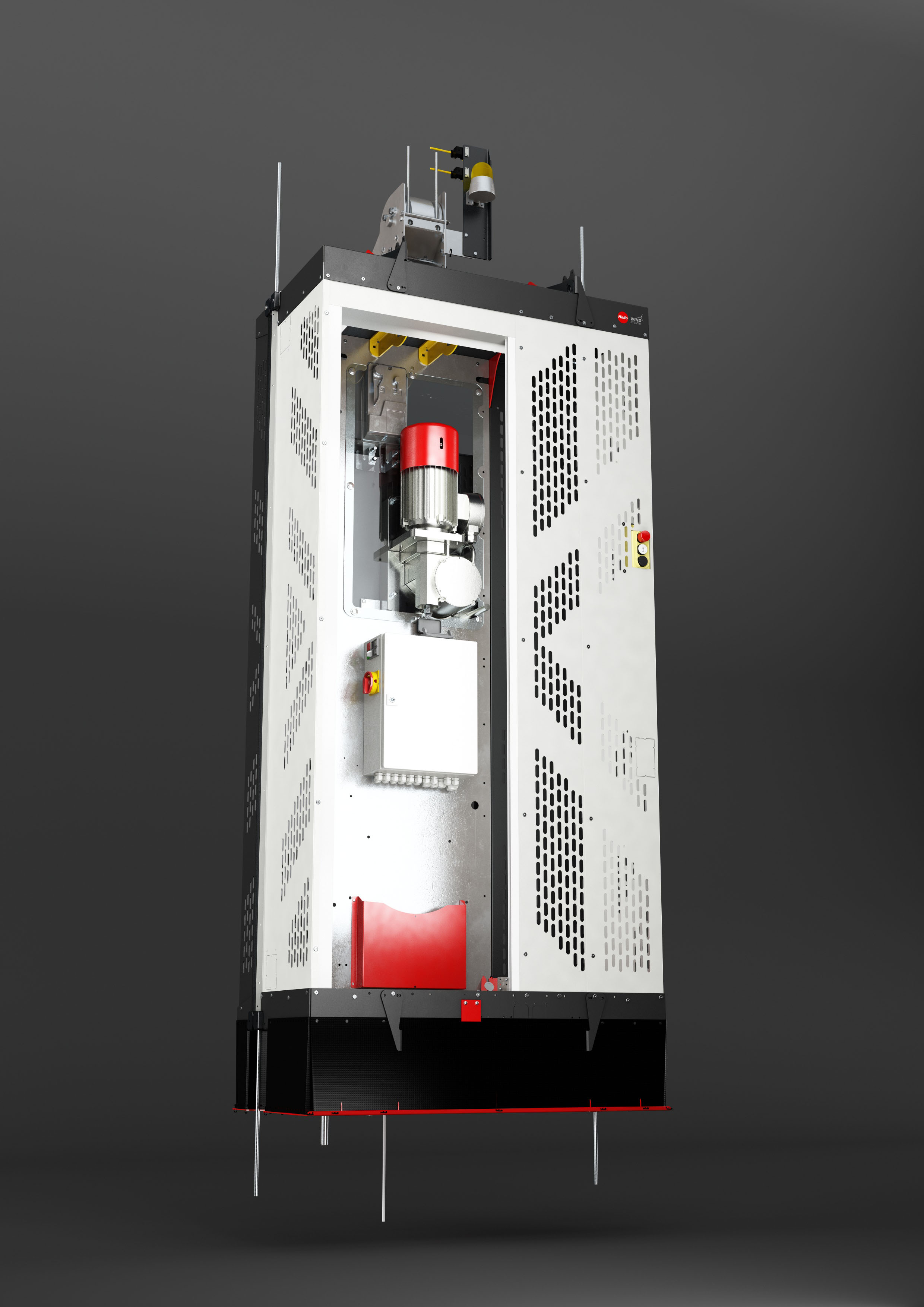

GLOBALlift H2
Servicelift, rope-based
Payload 250 kg
max. 2 Persons
581 x 980 x 3120 mm
Space required  1300 x 700 mm
690 V/50 Hz, 600 kg
24 kN
1150 mm

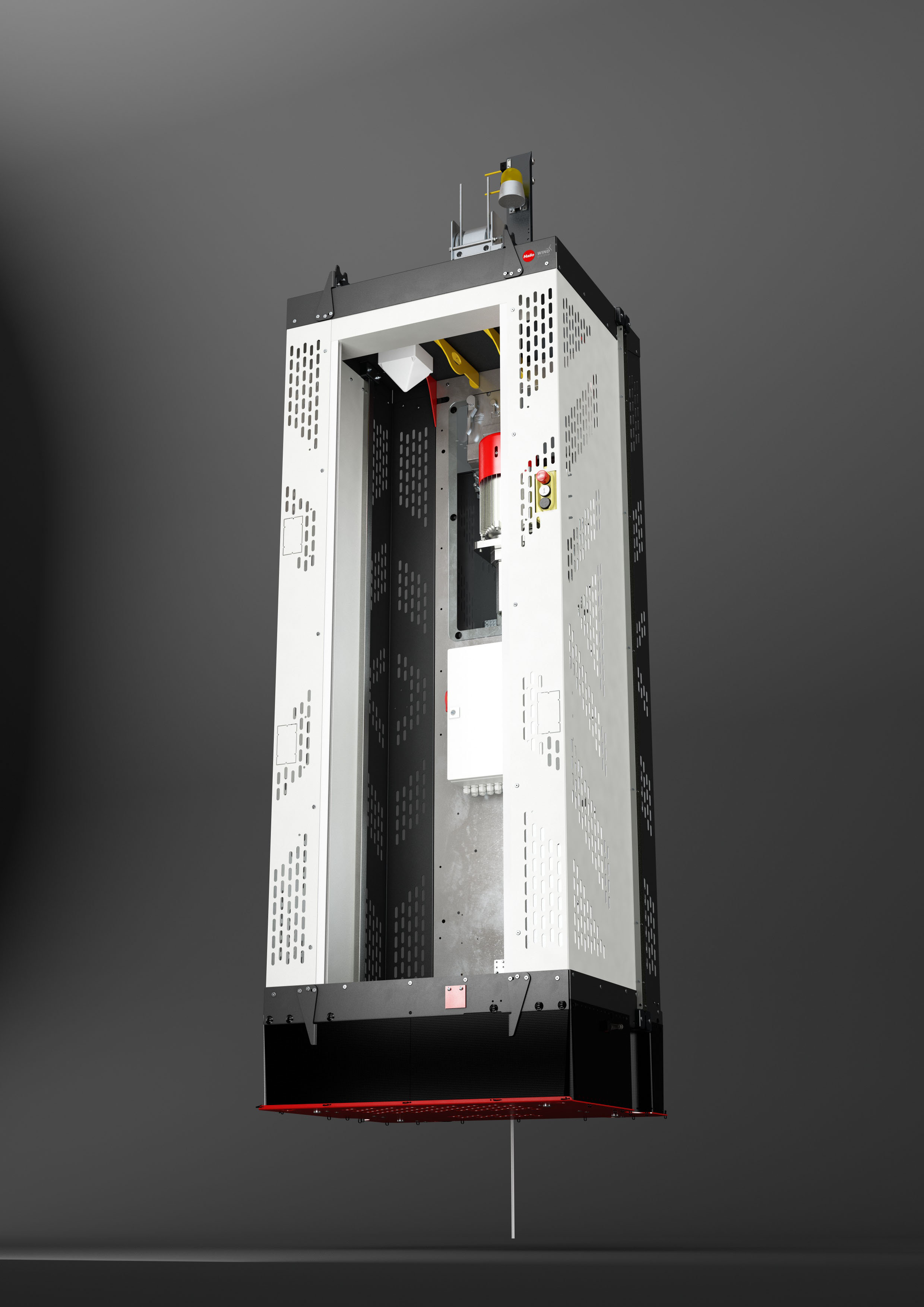

GLOBALlift H4
Servicelift, rope-based
Payload 250 kg
max. 2 Persons
813 x 1011 x 2914 mm
Space required 1200 x 920 mm
400 V/50 Hz, 600 kg
24 kN
1020 mm

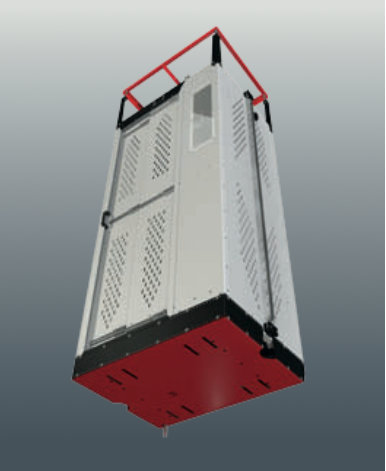

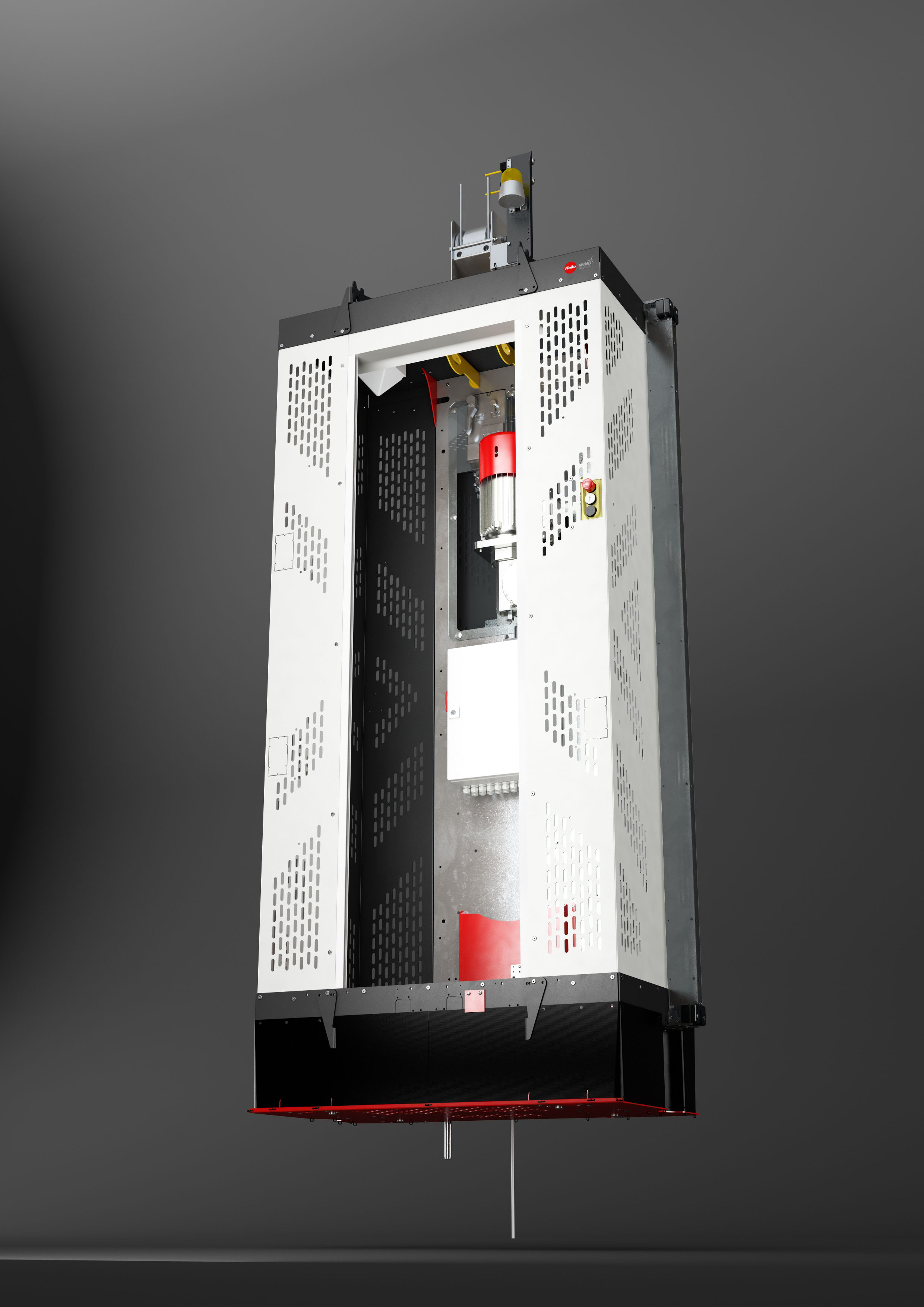

GLOBALlift H5
Service lift, rope-based
Payload 250 kg
max. 2 persons
813 x 1011 x 2914 mm
Space requirement 1200 x 920 mm
400 V/50 Hz, 600 kg
24 kN
1045 mm
